Our portfolio includes two equalizer products specifically designed for bass guitars.
We offer a 2-band equalizer, designated as TAISTO B-2EQ1, and a 3-band equalizer, designated as TAISTO B-3EQ1. These products allow you to upgrade your bass guitar to an active system.
The equalizer devices are securely packaged within a square block and include potentiometers, a battery connector, and a user manual with installation examples.
They can be installed within the bass guitar, requiring a space of 42x56x25mm for the block. And we use these units also in our own bass guitars.
The image below shows a sample wiring diagram for the 3 band EQ unit B-3EQ1.
As depicted in the picture, the EQ units also accommodate the use of a boost switch if necessary. However, it can also be configured in a fixed mode.
Short specification
Supports volume gain boost
B-3EQ - bass, middle and treble boost/cut
B-2EQ - bass, treble boost/cut
Normal or optional center detent potentiometers
Very long of playing time in daily active use
Current need in range 0.7 - 1.4 mA, 9V battery
Stereo jack for power switching
Size 42x56x12.5mm
Protected for wrong power supply polarity
Reliable with strong casing for electronics
Basic Kit includes
EQ unit
Potentiometers: 3pcs (B-3EQ1) 2pcs (B-2EQ1)
9V battery
Battery holder clip
Stereo jack
Double sided tape piece
Shrinking tube for battery connection isolation
Installation and wiring guide
Add on options available (Ask from us)
Volume potentiometers with accessories
Guitar style potentiometers with accessories for volume, bass and treble
Center detent potentiometers
Dome knobs, normal and small size
DPDT switches for pickup switching and bypass

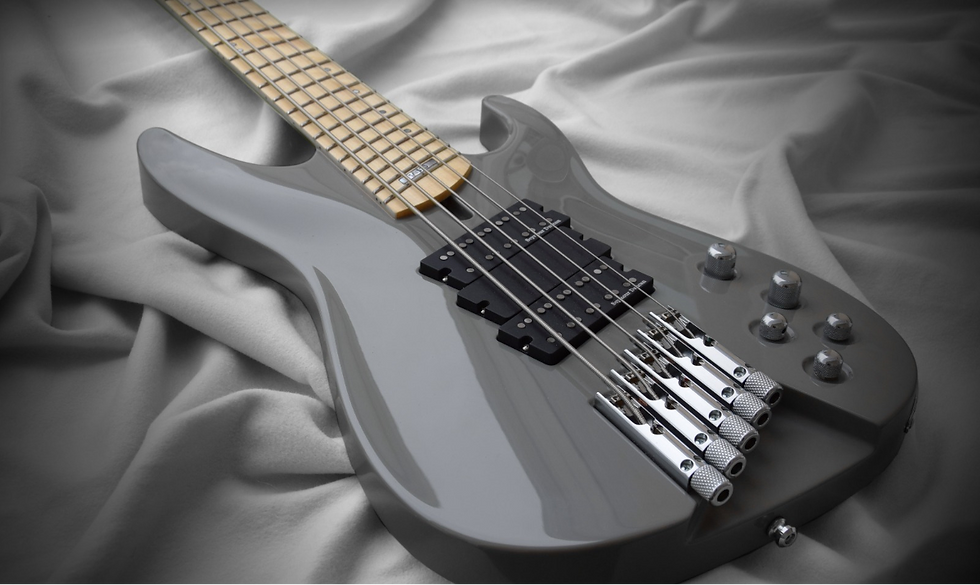

In the picture below - 3 band eq B-3EQ1 installed to this TAISTO iZEN 5-string headless bass guitar. 3 smaller knobs are for the eq bass, middle and treble control.
